UNIVERSAL CINE LIVE MULTICAM SYSTEM
POLARIS
Developed in collaboration with engineers from major broadcast companies in Japan, Polaris delivers high power capacity, comprehensive connectivity, native connectors and asynchronous zero-delay mass signal transmission over 1km.

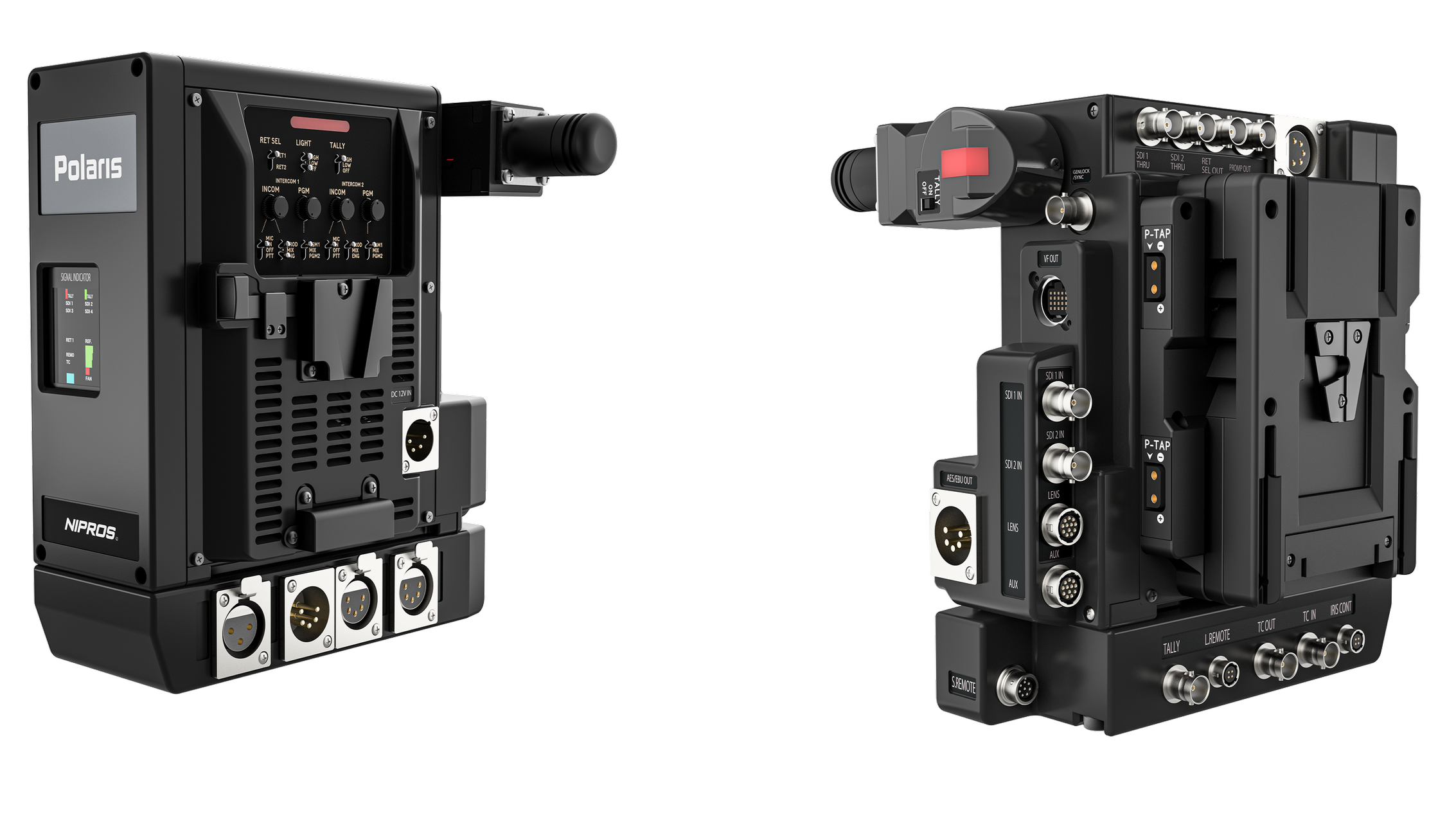

Broadcast-Grade Connectivity & Ergonomics
Effortless Transmission of All Signals
Transmits all video, audio, control signals, and power with no delay or synchronization ensuring real-time precision for live production.

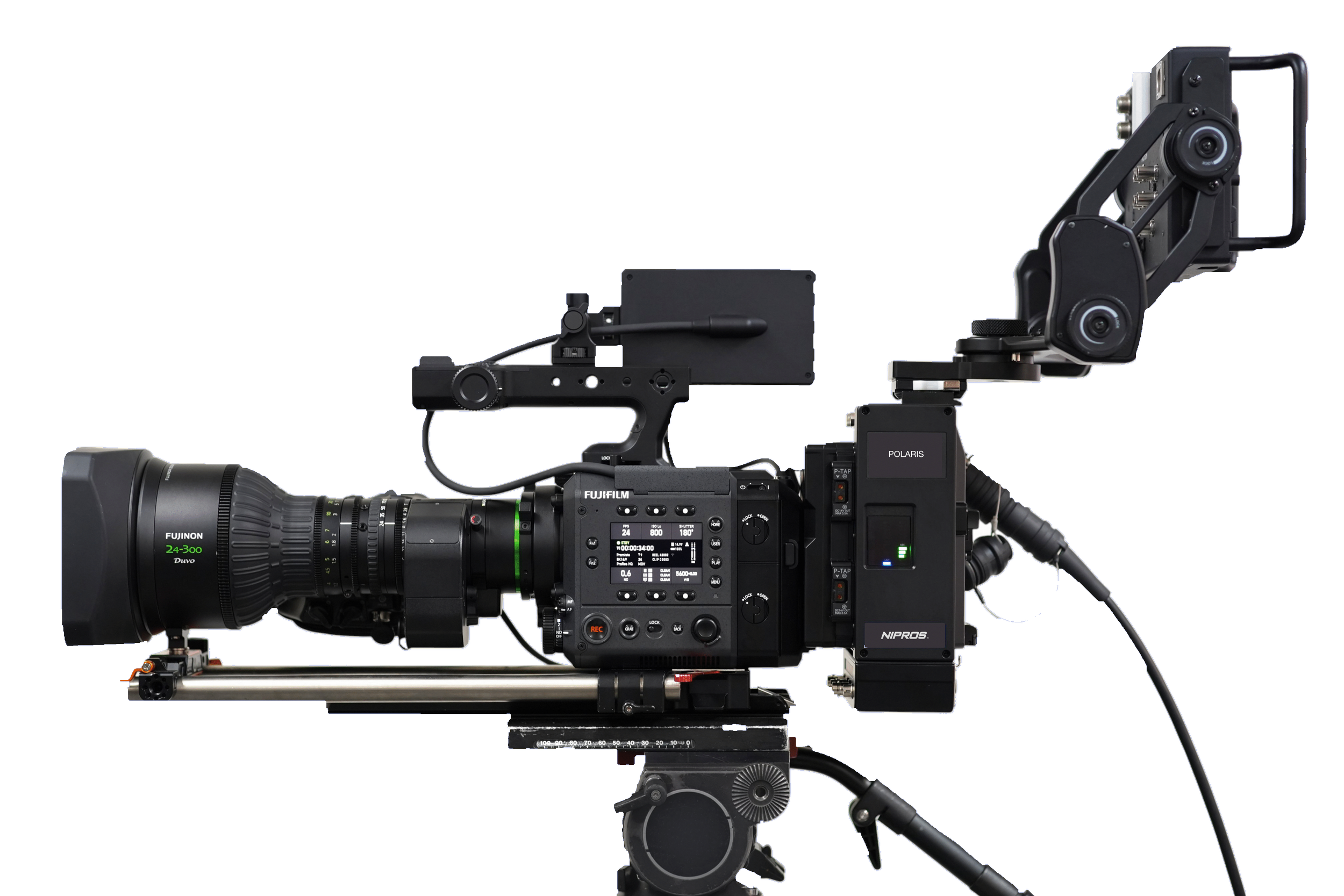

Multi-Brand Support

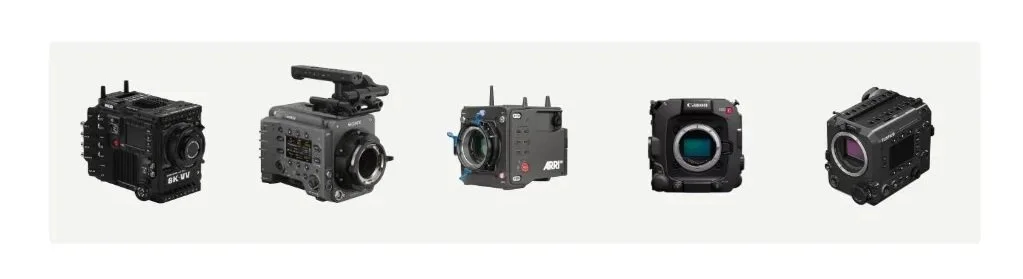

Seamlessly compatible with major cinema and broadcast cameras, including ARRI, Canon, Fujinon, RED and SONY.
Comprehensive & Indepdendent Connectivity
Supports a vast array of interfaces including SDI, LAN, Genlock, Timecode, Analog/Digital Audio, and Remote Control (RS-232C, RS-422)
Accessory Friendly
Designed to power and control essential rig components such as viewfinders, tallies, monitors, intercoms, and lighting.

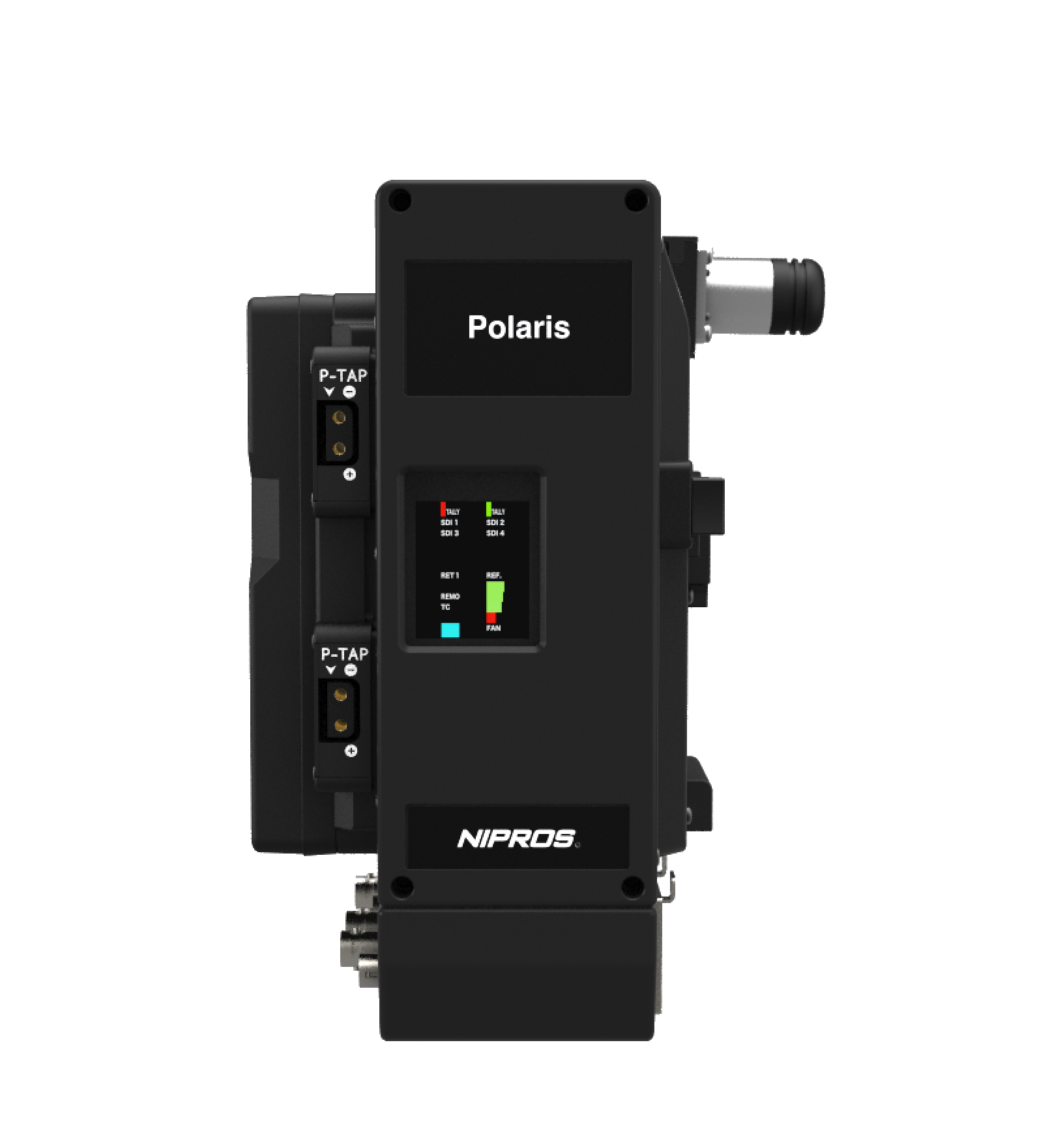

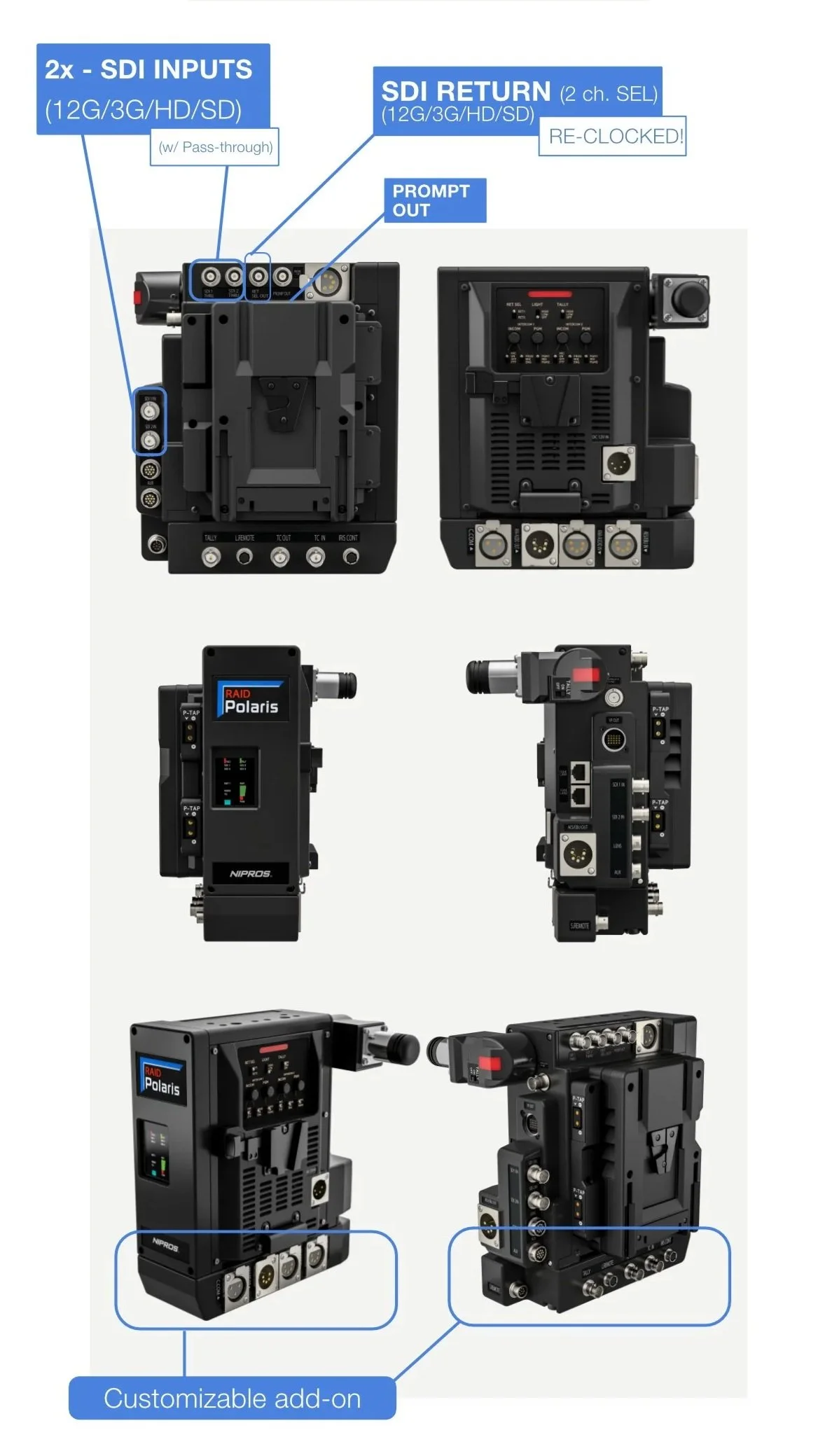

Universal Compatibility & Connectivity
Polaris is designed to connect to all cameras across all physical layers and electronic communication protocols. Zero configuration is required, because each connection behaves like a copper cable: you plug it in and the signal comes out the other side. Similarly, operators and technicians shouldn't need to adapt, as every connector is familiar, and each port has been located in a convenient position for real-world setups.

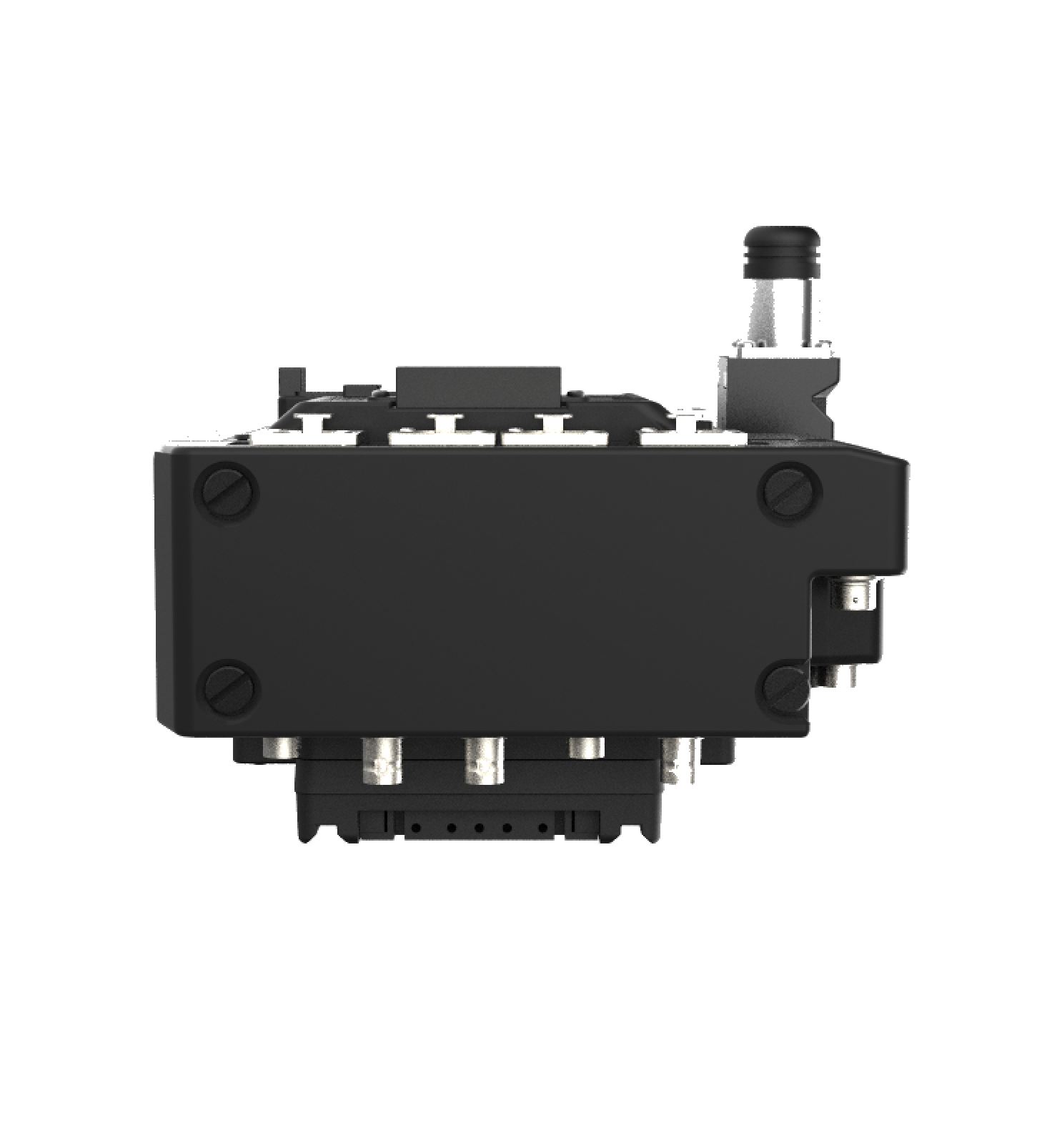

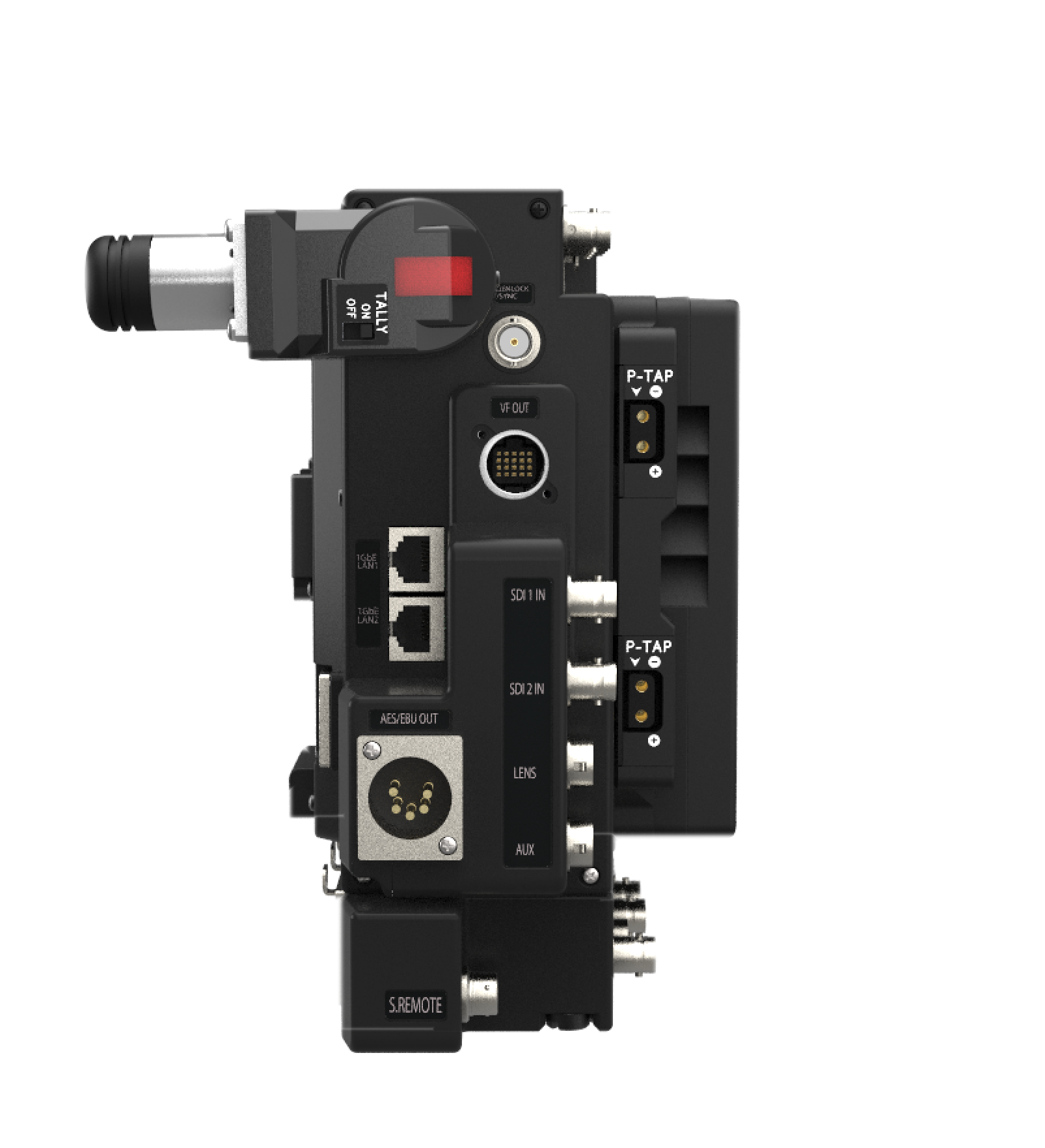

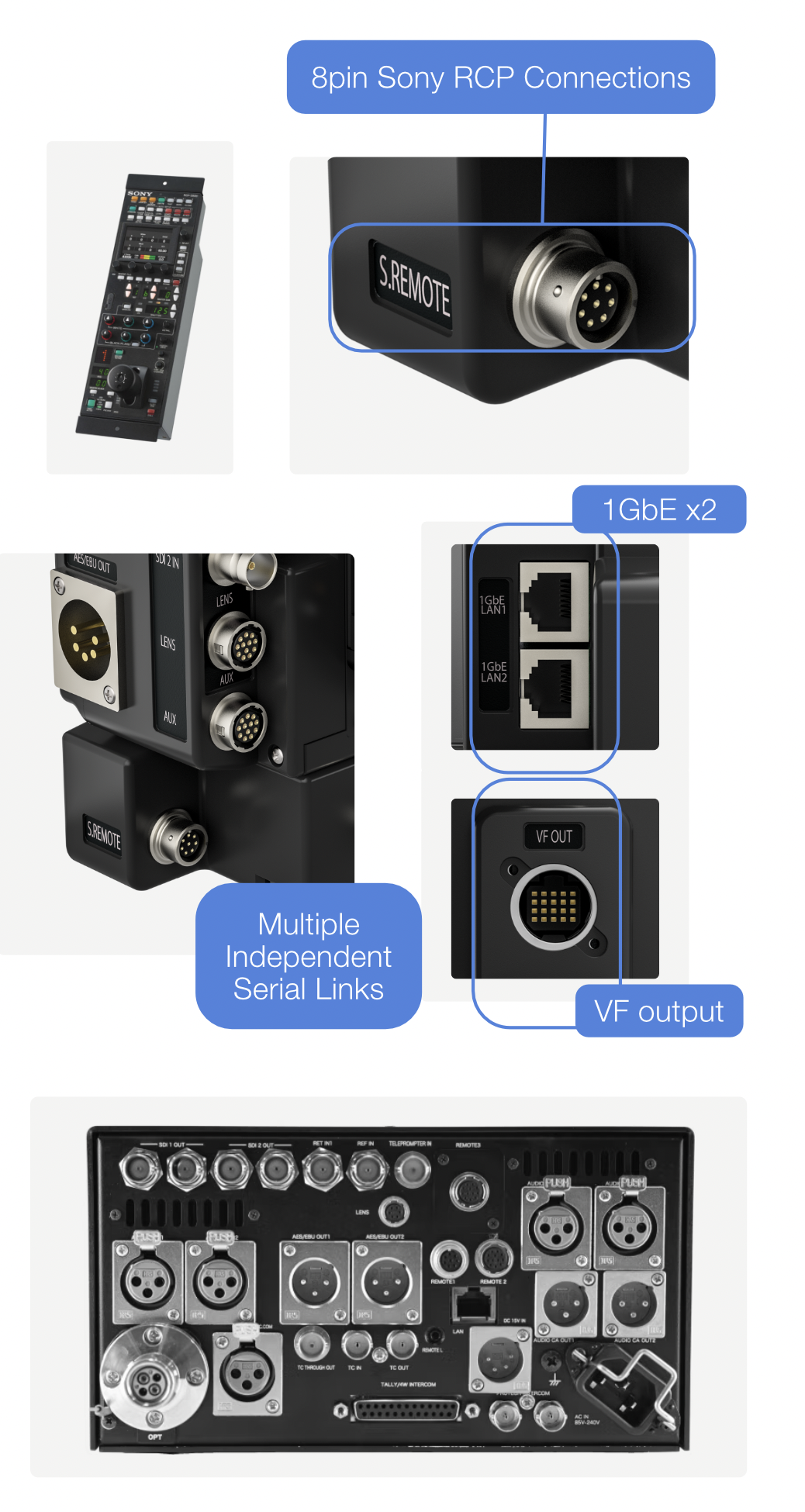

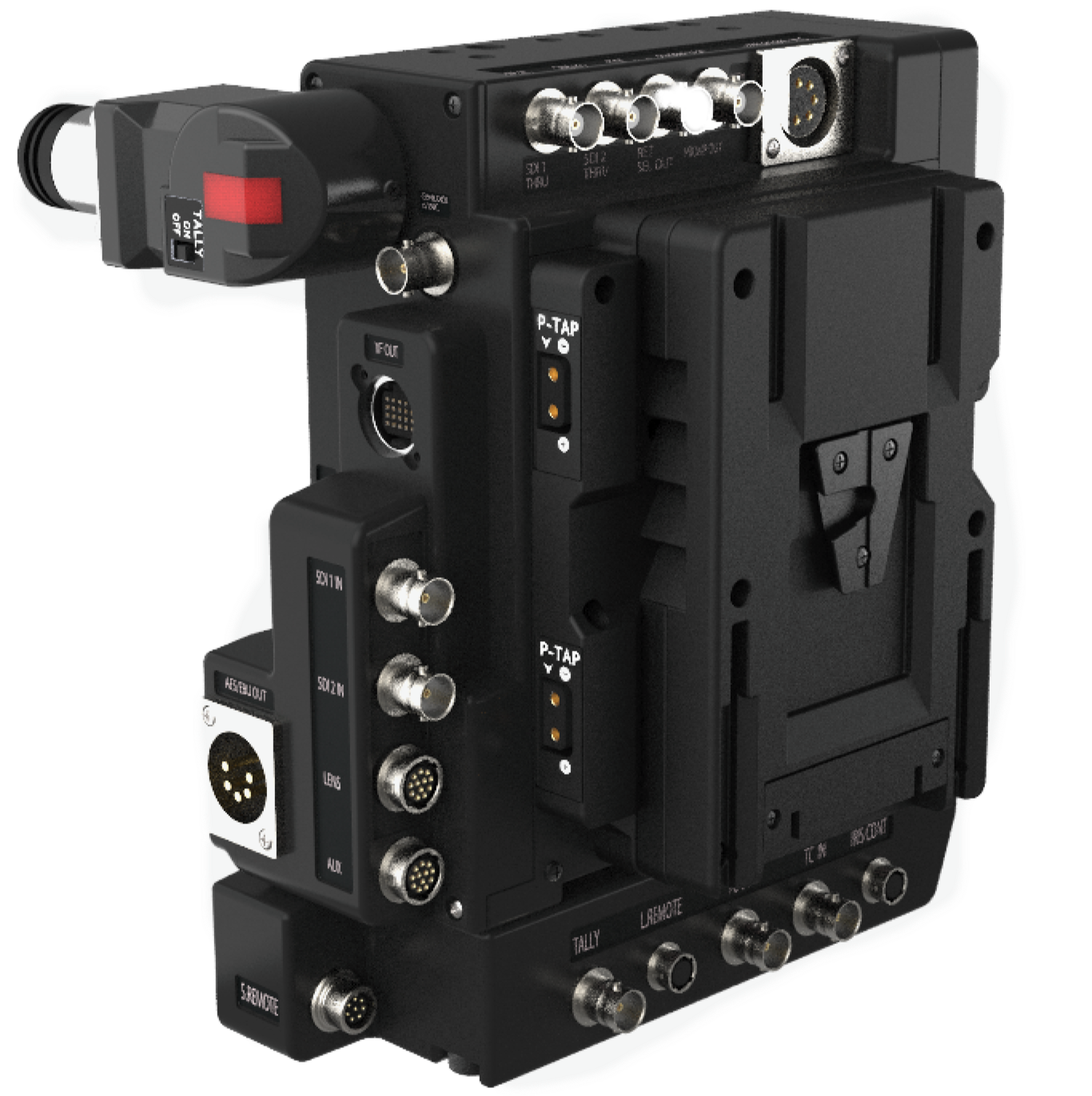

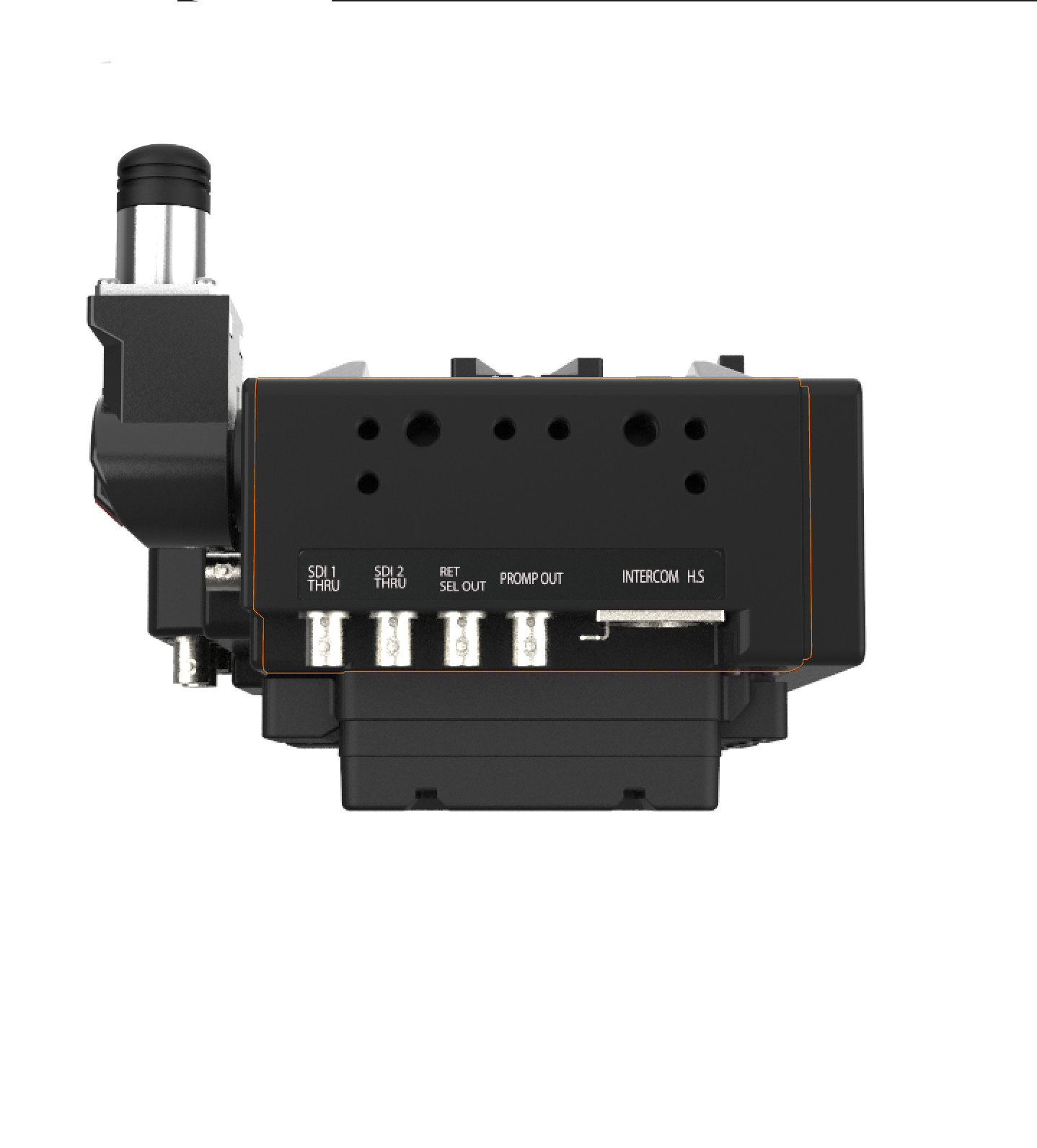

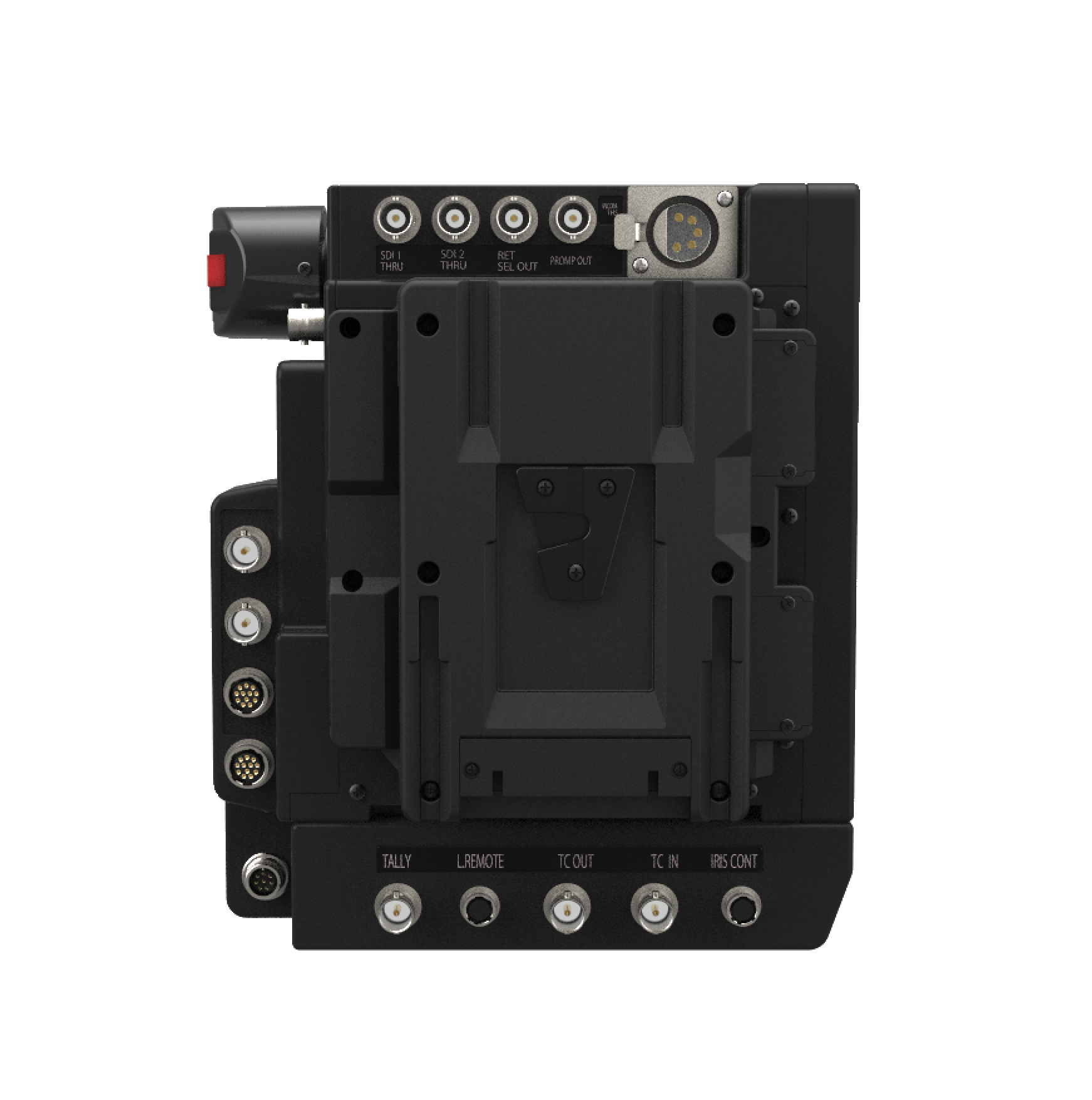

Sony 8p Remote, Serial, 1GbE Switch, Lens + VF
Controlling every aspect of the camera feels seamless and familiar with comprehensive dedicated connections and signalling.

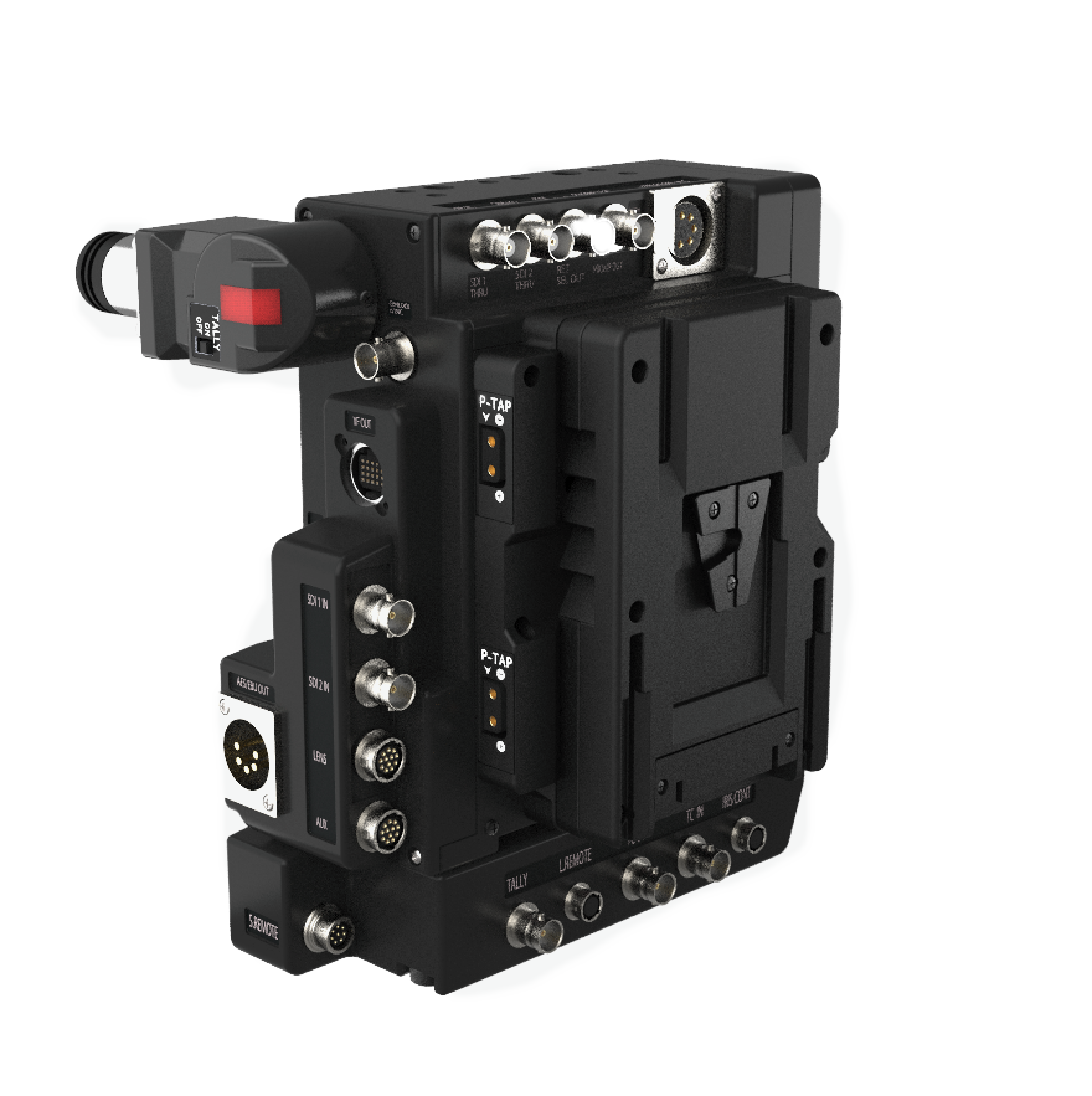

Native Connectors & Signals
Natively connect all conventional cables to their usual ports on cameras, lenses or other devices - Polaris treats each connection just as a copper wire would behave.
Up to 450W @ 2 km: Long-Range, High Power
Polaris base stations can be configured to transmit 4500W over long distances, allowing major cinema camera systems the power and voltage required for normal operation. Alexa 35 can be operated in native 24V power mode via a simple battery adapter plate.

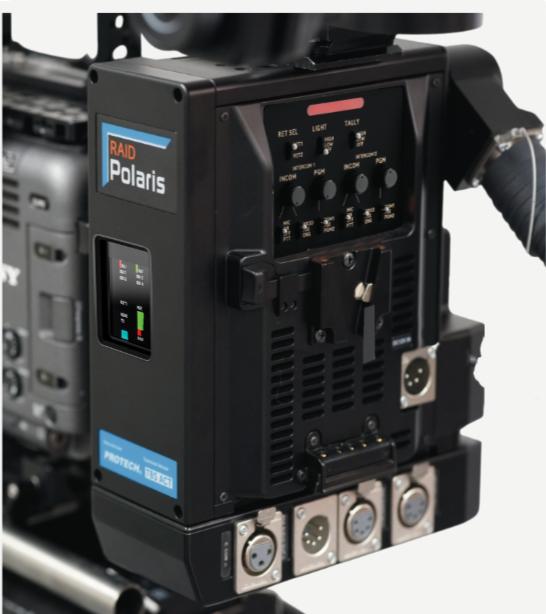

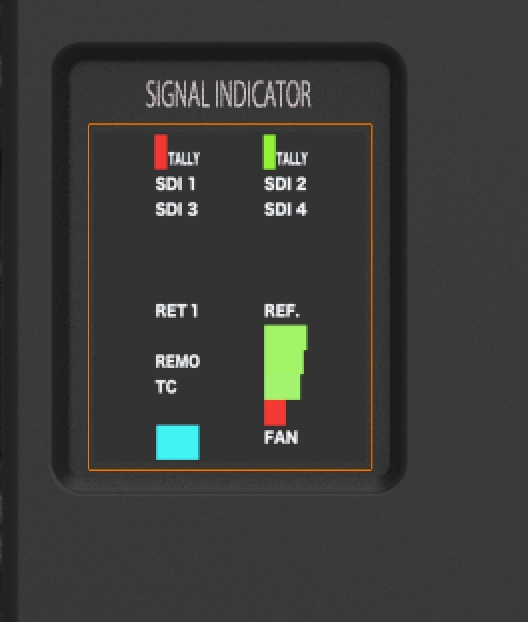

Universal Comms & Tally Control Interface

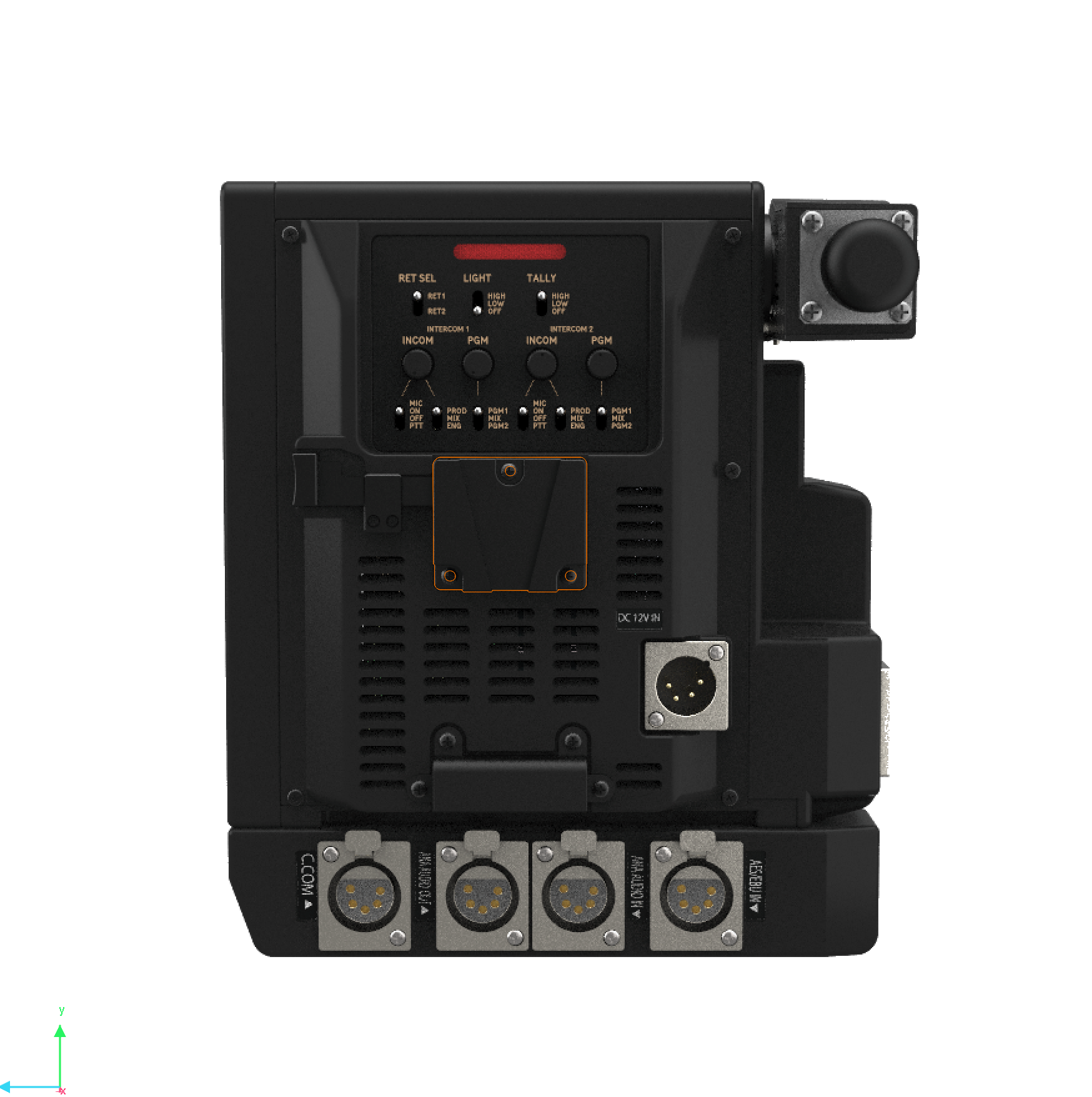

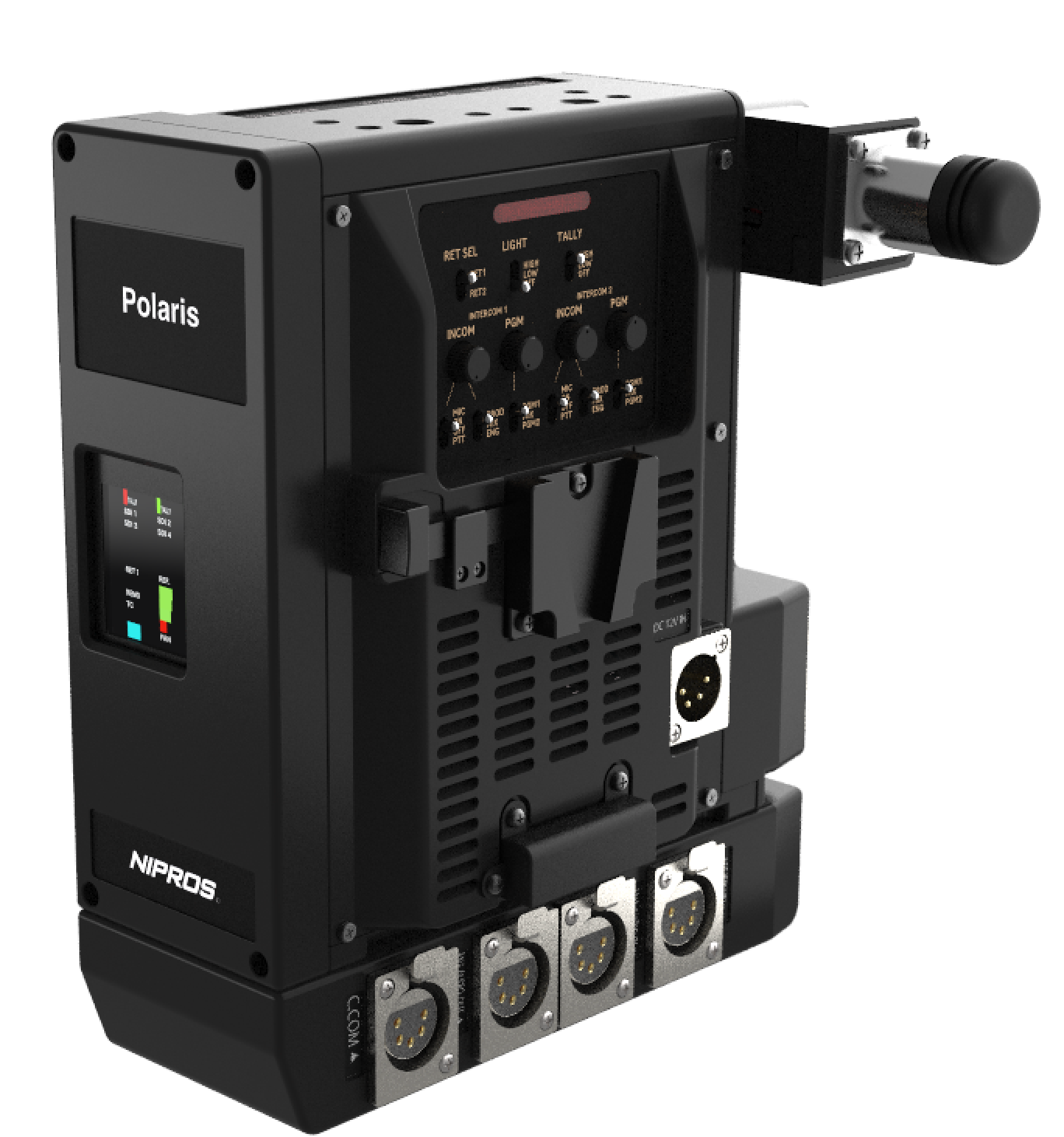

Tactile & Familiar Operator Control Panel

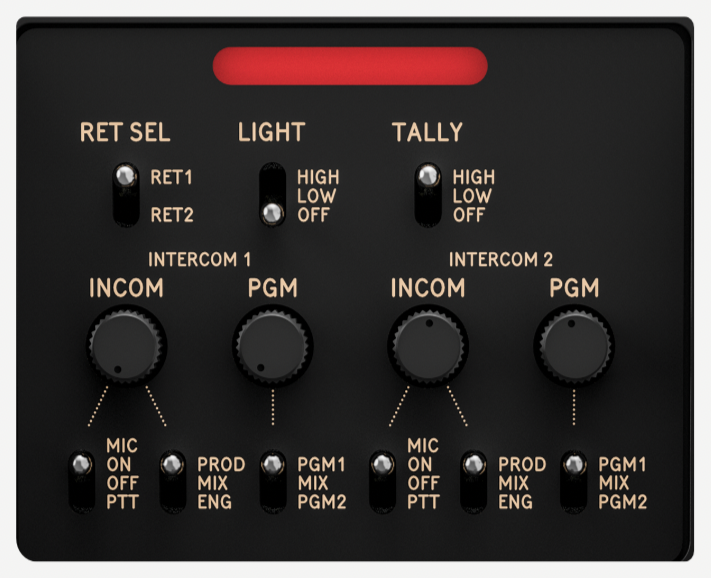

Identical to standard broadcast cameras, operators can use muscle memory to manage Dual-Channel Intercom, Tally and Return signals
Polaris allows for extremely simple and quick deployment of comms systems, perfect noiseless analog and digital audio at every single camera location. All NIPROS analog connections are instantly and independently connected from the flypack to any camera channel with zero latency or compression.
Zero-Delay, Optically Isolated Analog Audio & Intercoms
Connect to all cameras across all physical layers and electronic communication protocols. Zero configuration is required, because each connection behaves like a copper cable: plug it in and the signal comes out the other side. Similarly, operators and technicians shouldn't need to adapt, as every connector is familiar, and each port has been located in a convenient position for real-world setups.

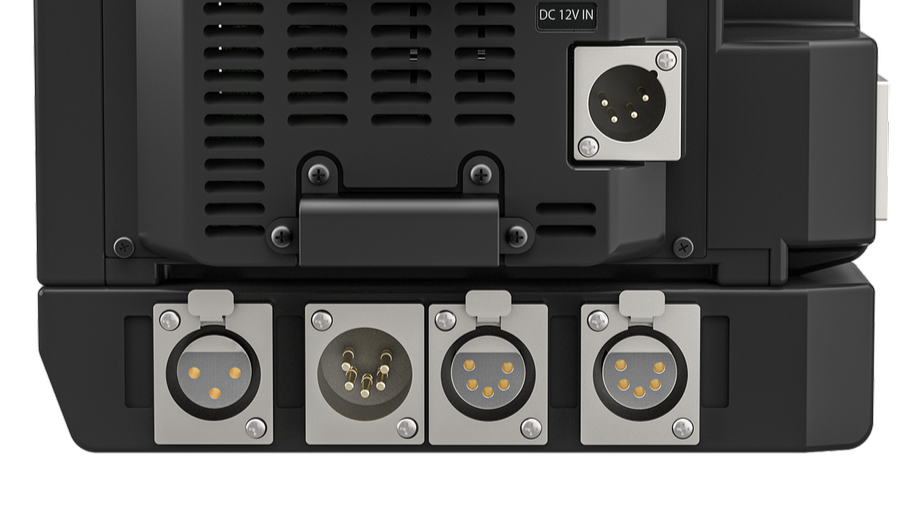

Plug and Play 4W and 2W with full ClearCom / RTS Native Compatibility
Without any adapters or digital conversion, 2W or 4W intercom systems can be connected directly to Polaris using full-size connetors, without any digital artifacts or delays. Additionally, analog audio directly from a microphone-with or without phantom power-is transported instantaneously to the base station as if the audio mixer was directly connected next to camera
When a 2W system like ClearCom or RTS is connected to Polaris, the system will automatically supply beltpack power, allowing for quick localized subnets or other ad hoc comms expansions. Dedicated headset connection with native XLR4pin just makes everything simpler for Operators.
SPECIFICATIONS
| Specification | Camera Adapter | Base Station |
|---|---|---|
| Input / Output | ||
| SDI 1-2 Input/Output | SDI 1-2 IN : BNC x2 (12G/3G/HD/SD-SDI) | SDI 1-2 OUT : BNC x2 x2 (each two outputs) (12G/3G/HD/SD-SDI) |
| SDI Return | RET 1-2 OUT : BNC x1 x2 (12G/3G/HD/SD-SDI) | RET 1-2 IN : BNC x1 x2 (12G/3G/HD/SD-SDI) |
| Reference | REF OUT : AUX x1 (Bi-level, Tri-level) | REF IN : BNC x1 (Bi-level, Tri-level) |
| Time Code | TC IN : AUX TC OUT : AUX | TC IN : BNC x1 TC OUT / THROUGH OUT : BNC x1 |
| VF OUT | VF OUT : 20P x1 For PROTECH VF | — |
| Prompter | ||
| Teleprompter | PROMPT OUT : BNCx1 | PROMPT IN : BNCx1 |
| DC Power | ||
| DC Input | OPT : Via OPT Cable DC ADAPTER : XLR 4P x1 BATTERY : V-Mount | DC IN : XLR 4P (male) x1 |
| DC Output | DC 15V OUT : V-mount DC 15V OUT (MAX3.5A) : CAMTAP (female) x2 | OPT : Via OPT Cable to CA HES 4P : DC 15V OUT 2A |
| DC Power Output Max. | approx. 11A / 170 W* | approx. 300 W* |
| Audio | ||
| Audio Input | AES EBU-CA IN 1/2 : OPTION CONNECTOR x1 ANALOG AUDIO-CA IN 1/2 : OPTION CONNECTOR x1 | AES EBU IN 1/2/3/4 : BNC x2 AUDIO-PGM IN 1/2 : XLR 5P (female) x1 |
| Audio Output | AES EBU-PGM OUT 1/2 : XLR5P x1 ANALOG AUDIO-PGM OUT 1/2 : OPTION CONNECTOR x1 | AES EBU-CA OUT 1/2 : BNC x1 AUDIO-CA OUT 1/2 : XLR 5P (male) x1 |
| Intercom | ||
| 2W Intercom | 2W INTERCOM : XLR 3P (female) x1 (Clear-Com comp.) | 2W INTERCOM : XLR 3P (female) x1 (Clear-Com comp.) |
| 4W Intercom | 4W INTERCOM : H.S (XLR4P or 5P) | 4W INTERCOM : DB-25 x1 (shared with Tally) |
| Tally | ||
| Tally Signal Input | — | 4W INTERCOM TALLY : DB-25 x1 (Shared with Intercom) |
| Tally Signal Output | TALLY : BNC x1 Green 3.8V / RED 5V | — |
| Tally Indicator | (Side) LED RED TALLY x1, with HI / Lo / OFF Switch, Rear R/G Tally | — |
| Remote | ||
| Remote Connector | LENS : x1 HIROSE 12P REMOTE : x1 For 232C / 422 AUX : x1 LA OPTION CONNECTOR x1 | REMOTE : 12Px1 RS-232 / RS-422 RET SELECT : 12Px1 CONNECT RET SELECT ADAPTOR |
| LAN | ||
| LAN Connector | RJ45 : x2 1Gbps Hub | RJ45 : x2 1Gbps Hub |
| Fiber Optics | ||
| Connector | SMPTE 304M : LEMO EDW.3K.93C.TLC | SMPTE 304M : LEMO FXW.3K.93C.TLM |
| Maximum distance | approx. 2km (1.25 miles)* | approx. 2km (1.25 miles)* |
| General | ||
| Power requirement | (DC) DC 12 V / approx. 20W MAX. | (AC) AC 85-240V (DC) DC 12 V / approx. 40W MAX. |
| Operating temperature | 0°C to +40°C (+32°F to +104°F) | 0°C to 40°C (32°F to 104°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 0% to 95% (RH) Non condensing | 0% to 95% (RH) Non condensing |
| Weight | approx. 1.45 kg | approx. 5 kg |
| Dimensions (WxHxD) | 110 x 156 x 186 mm (excluding protrusions) | approx. 215 x 115 x 388 mm (excluding protrusions) |
